How Does Water Hammer Occur and What Damage Can It Cause Over Time?

A loud bang behind the wall when a washing machine shuts off. A sharp metallic thud after turning off a faucet. These sounds are classic signs of water hammer—a hydraulic shock wave that travels through a plumbing system when moving water is forced to stop or change direction abruptly. While it may seem like a minor nuisance at first, the underlying pressure surge can exceed several hundred pounds per square inch in milliseconds, placing extreme stress on pipes, fittings, valves, and fixtures.

Understanding how water hammer occurs and what damage it can cause over time requires looking at the physics of fluid momentum, system design, and pressure regulation. In the sections below, we examine the mechanics of sudden pressure surges, the most common causes in residential and commercial systems, the engineering role of air chambers and arrestors, and the long-term structural consequences that develop when hydraulic shock is left unaddressed. As Tiger Plumbing Heating & Air explains through its plumbing resources, water pressure management is central to system durability and performance.

The Physics Behind Water Hammer: Sudden Pressure Surges in Plumbing Systems

Water hammer is the result of fluid momentum and the incompressibility of water. When water flows through a pipe, it carries kinetic energy proportional to its velocity and mass. If a valve closes rapidly, the moving column of water cannot instantly stop because liquids resist compression. Instead, the energy converts into a pressure wave that propagates backward through the system at the speed of sound in water—typically around 4,000 to 4,800 feet per second in copper piping.

This phenomenon is described mathematically by the Joukowsky equation, which relates pressure increase to fluid density, wave speed, and change in velocity. Even a modest change in flow velocity can generate a substantial pressure spike. For example, in a system operating at 60 psi, a rapid valve closure can temporarily elevate pressures well above 150 psi depending on pipe material and system configuration. These transient spikes are short in duration but highly destructive due to their magnitude and repetition.

Pipe material also influences the intensity of the surge. Rigid materials such as copper or steel transmit shock waves more efficiently than flexible materials like PEX. Longer pipe runs and higher flow velocities increase the momentum involved, amplifying surge effects. These principles apply to both residential and commercial installations, particularly in systems where solenoid valves, quick-closing fixtures, or mechanical shutoff devices are present.

Common Causes of Water Hammer in Residential and Commercial Piping

The most common cause of water hammer is the rapid closure of valves. Appliances such as dishwashers and washing machines use electrically actuated solenoid valves that shut off almost instantaneously. This abrupt stoppage creates the sudden deceleration required for hydraulic shock. In commercial settings, flushometer toilets and automated control valves produce similar conditions on a larger scale.

High water pressure is another major contributing factor. When static pressure exceeds recommended limits—typically 50 to 70 psi for most plumbing systems—the velocity of flowing water increases. Greater velocity means greater momentum, which results in a more intense pressure wave when flow stops. Pressure-reducing valves are commonly installed to control this variable and stabilize system performance.

Loose or inadequately supported piping compounds the problem. When a shock wave travels through the system, unsecured pipes can move within wall cavities or ceiling spaces, creating the audible banging associated with water hammer. Proper pipe anchoring and system design standards outlined in modern plumbing practices are intended to reduce these dynamic forces and protect structural components.

The Role of Air Chambers and Water Hammer Arrestors in Prevention

Air chambers and water hammer arrestors function by absorbing the kinetic energy of moving water and converting it into controlled compression. An air chamber is a vertical pipe stub installed near fixtures. Because air is compressible, it acts as a cushion when a pressure wave reaches it. As water pushes against the trapped air pocket, the air compresses and reduces the peak pressure transmitted through the system.

Traditional air chambers can lose effectiveness over time because water gradually displaces the trapped air. Modern water hammer arrestors use sealed chambers with a diaphragm or piston separating air from water. These mechanical devices maintain a permanent air cushion and are rated for specific fixture unit loads under plumbing code standards such as ASSE 1010.

Proper sizing and placement are critical. Arrestors must be installed as close as possible to quick-closing valves to intercept the shock wave at its source. In multi-story buildings, engineered systems may include multiple arrestors placed strategically along branch lines. These devices are not decorative additions; they are calculated components designed to manage pressure transients within allowable limits.

Long-Term Structural Damage to Pipes, Fittings, and Valves

Repeated hydraulic shock imposes cyclical stress on piping systems. Each pressure spike slightly expands and contracts pipe walls. Over thousands of cycles, this leads to metal fatigue in copper and galvanized steel lines. Microfractures may develop at solder joints or threaded connections, eventually resulting in leaks.

Valve seats and internal components are especially vulnerable. Sudden pressure reversals can distort valve assemblies, degrade seals, and weaken internal springs. In commercial environments with high cycling frequency, this degradation accelerates. Laboratory testing shows that pressure surges above rated system limits significantly reduce the operational lifespan of valves and fittings.

In severe cases, water hammer can cause pipe rupture. When surge pressure exceeds the material’s yield strength, catastrophic failure may occur. Even when rupture does not happen, the cumulative effect of repeated stress shortens system life expectancy and increases maintenance frequency. Structural integrity declines gradually, often without visible warning signs.

Secondary Effects: Fixture Failure, Joint Leaks, and System Fatigue

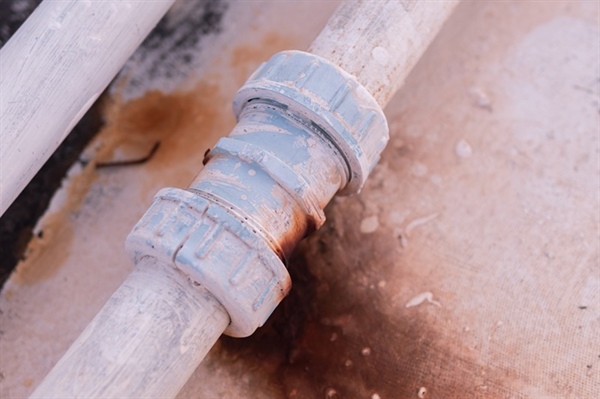

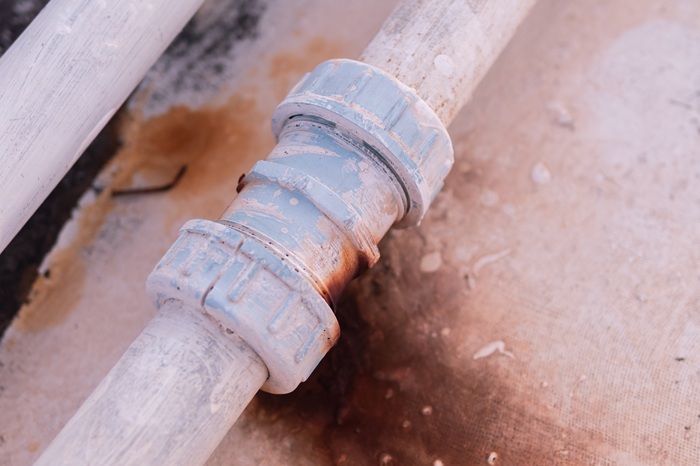

Beyond primary pipe damage, water hammer produces secondary failures that compromise overall system reliability. Faucet cartridges, supply lines, and appliance connectors experience repetitive shock loading. Over time, seals degrade and threaded joints loosen, leading to intermittent leaks that may go unnoticed until water damage becomes visible.

Joint fatigue is particularly concerning in concealed piping. As pressure waves reverberate through branch lines, fittings absorb localized stress. Soldered and crimped joints are engineered for static pressure conditions, not constant dynamic shock. Gradual weakening increases the likelihood of seepage within walls or ceilings.

System fatigue also affects connected equipment such as water heaters and filtration assemblies. Expansion tanks can lose calibration under fluctuating pressure conditions, and internal tank linings may deteriorate faster. For system evaluations or technical assessments, property owners often reference Tiger Plumbing Heating & Air to review service specifications and inspection standards.

Professional Evaluation and Water Hammer Solutions in Eden Prairie

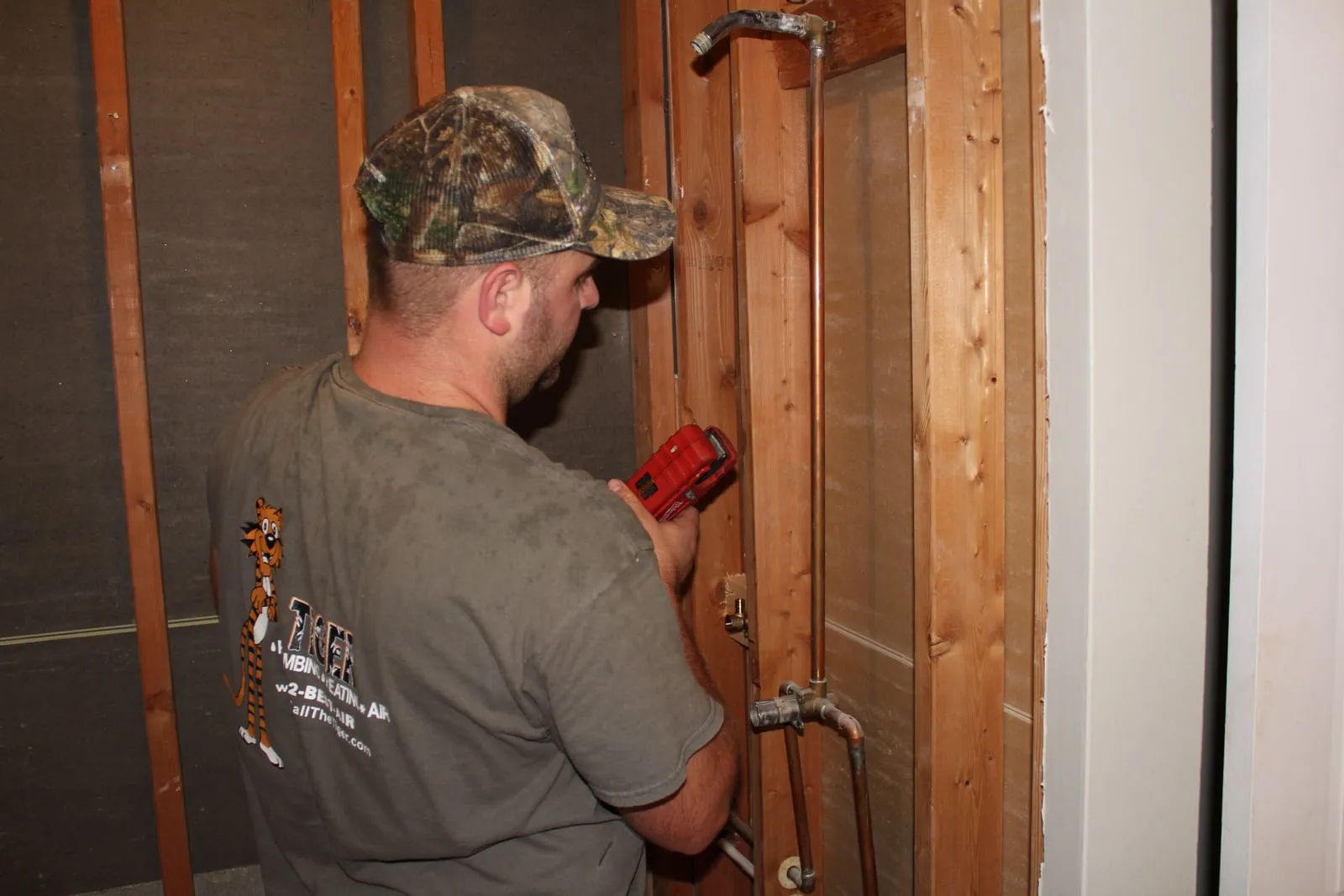

Persistent water hammer requires technical assessment and corrective planning. Tiger Plumbing Heating & Air provides pressure diagnostics, system inspections, and code-compliant mitigation solutions designed to stabilize plumbing infrastructure. Their licensed professionals evaluate static pressure levels, pipe support conditions, valve operation speed, and arrestor placement to identify root causes.

Corrective measures may include installing pressure-reducing valves, adding engineered water hammer arrestors, securing piping, or adjusting appliance valve timing. Addressing these variables restores system balance and reduces long-term structural stress. Ignoring hydraulic shock can lead to avoidable repair costs and water damage exposure.

To schedule an evaluation or request detailed service information, call 612-445-3030 or contact us through the company website. Professional assessment protects pipes, fixtures, and equipment from the cumulative effects of pressure surge damage.
